The specification

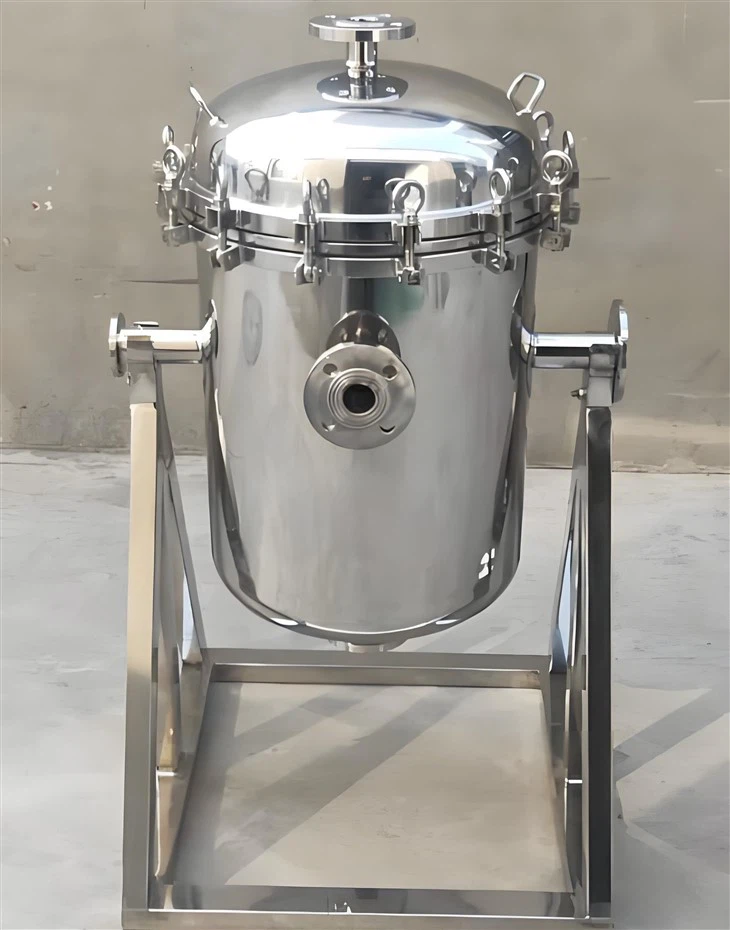

Titanium filtration equipment is a category of industrial filtration systems whose core functional components are constructed primarily from titanium metal or titanium alloys. These components leverage titanium's exceptional material properties to separate solids from liquids or gases in demanding environments.
Titanium filtration equipment refers to systems designed to filter and purify liquids, gases, or other substances, using titanium-based components due to the metal's unique properties. Titanium's excellent corrosion resistance, strength, and durability make it ideal for filtration processes in challenging environments, such as those involving aggressive chemicals or high temperatures.
Material
Titanium Grade
Common grades used for filtration equipment are Grade 2 (commercially pure titanium) and Grade 5 (Ti-6Al-4V). The choice of grade depends on the specific application and the fluid being filtered.
Corrosion Resistance
Titanium's excellent corrosion resistance is a key feature, especially in harsh chemical environments, seawater, or high-temperature applications.
Filtration Type
Mechanical Filtration
Used to remove solids, particulates, and sediments from fluids.
Chemical Filtration
For removing dissolved contaminants or particles that could react with other substances.
Micron Rating
Titanium filters are often available with various micron ratings, ranging from coarse to ultra-fine filtration (e.g., 1 micron, 5 microns, 10 microns, etc.).
Dimensions
● Filter Housing Dimensions: Standard sizes for filtration housings depend on the system's flow rate and the volume of fluid being processed. Custom dimensions can be provided based on specific filtration needs.
● Porosity: The pore size of the titanium mesh or filter media, typically measured in microns, varies depending on the application.
● Weight: The weight will vary based on the filter size, material thickness, and housing configuration.
Flow Rate
Flow rate is specified based on the volume of fluid the system will process, typically measured in liters per minute (LPM) or gallons per minute (GPM).Flow rates can be customized to match system requirements.
Operating Conditions
Pressure Rating
Titanium filtration equipment can handle high pressures, often ranging from 150 psi to 300 psi or more.
Temperature Range
Titanium can withstand high temperatures (up to 600°C or more) depending on the specific alloy and design.
PH Range
Titanium filters are suitable for a wide pH range, typically from 1 to 13, due to titanium's high resistance to acidic and alkaline environments.
Filter Media
● Titanium Mesh: Titanium filter media can be woven or sintered mesh for mechanical filtration. It is resistant to corrosion and has high durability.
● Titanium Powder or Sintered Titanium: Used for fine filtration applications, providing high surface area for capturing smaller particles.
Design Features
Self-Cleaning Capability
Some titanium filtration systems come with self-cleaning mechanisms like back-flushing or automated cleaning cycles.
Modular Design
Filters may come in a modular configuration, allowing for easy scaling or replacement.
Connections
Flange, threaded, or quick-connect options for easy installation and maintenance.
Applications
● Water Filtration: For industrial, chemical, and marine water filtratio
● Oil Filtration: Used in petrochemical industries for refining, lubrication, and oil filtration.
● Chemical Processing: For filtration of reactive chemicals in high-corrosion environments.
● Food and Beverage: For sterilizing or purifying liquids in food and beverage manufacturing processes.
