Specifications

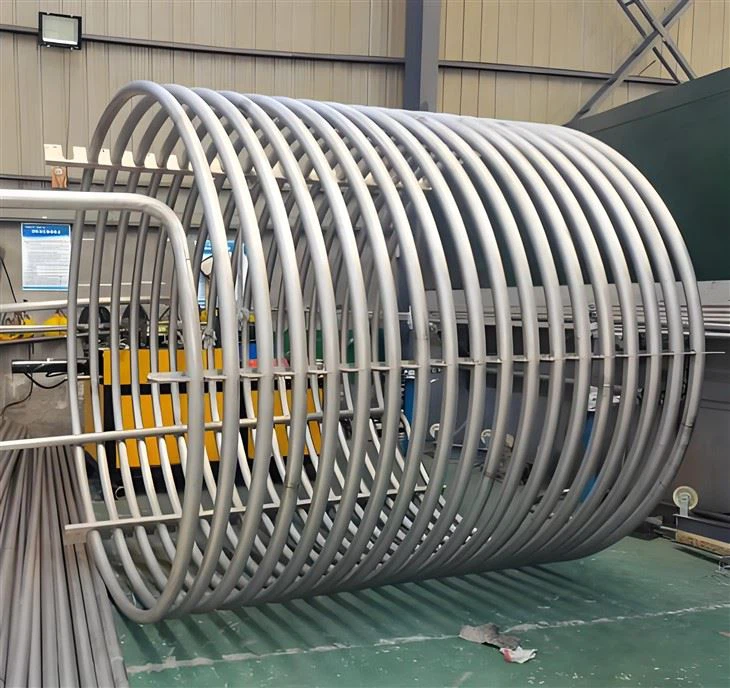

Titanium Electric Heater is a device that converts electrical energy into heat through resistive heating elements, where the primary components exposed to the process fluid or environment are constructed from titanium or titanium alloys. These are immersion or inline heaters designed specifically for heating aggressive liquids and gases where standard materials would corrode, contaminate the medium, or fail prematurely.<br/>
Titanium Electric Heater is a type of heating device that uses titanium as a key material in its construction, particularly in the heating element and other components, to provide efficient heat transfer. Titanium is known for its corrosion resistance, high strength, and ability to perform in extreme conditions, making it an ideal material for electric heaters that must operate in challenging environments, such as in the chemical, marine, and food processing industries.
Material
Titanium Alloy
Commonly, Grade 2 Titanium (commercially pure) is used for its balance of strength, corrosion resistance, and ease of fabrication.
Titanium Alloy Grade 5 (Ti-6Al-4V)
In applications requiring higher strength or specific thermal properties, Grade 5 titanium may be used, though it is less common than Grade 2 for heating elements.
Heating Element Core
The core of the heater may be made of titanium tubing or titanium-coated resistance wires that are capable of withstanding high temperatures without degradation.
Heating Element Design
Type
Can be designed as rod-type, coil-type, or tube-type, depending on the application.
Shape
Common shapes are cylindrical, flat, or spiral for coil-type heaters.
Voltage
Can operate at a wide range of voltages, from low voltage (12V, 24V) for smaller systems or specialized applications to high voltage (110V, 240V, or industrial 480V) for larger, industrial-scale heaters.
Power Ratings
Typically available in power ranges from 50W to 10,000W or more, depending on the system's size and intended use.
Size and Dimensions
● Length: Can vary depending on the application, typically ranging from 10 cm to 2 meters or more.
● Diameter: From 2 mm for small, precise heating elements to 100 mm or more for large industrial heaters.
● Flexibility: Some systems feature flexible designs (such as coiled or bendable tubing) to accommodate various heating needs in confined or complex spaces.
Temperature Range
● Operating Temperature: Titanium electric heaters can typically operate in a temperature range of -50°C to 600°C (or higher for specialized high-temperature systems). This range can be adjusted based on the type of titanium alloy and the heater's design.
● Max Temperature: Some specialized heaters can handle temperatures up to 800°C, particularly in controlled industrial environments.
Watt Density
Watt density refers to the amount of power the heater can output per unit of surface area. Titanium electric heaters typically have a watt density range of 20 W/in² to 200 W/in² (depending on the heating element type and the temperature it is designed to withstand).
Corrosion Resistance
Superior Corrosion Resistance
Titanium is known for its ability to resist corrosion from saltwater, acids, and other aggressive chemicals, making it ideal for use in harsh chemical environments, marine applications, and systems that handle corrosive fluids.
Non-reactivity
Titanium does not react with most chemicals, which is crucial in preventing contamination of the materials being heated, especially in processes that involve sensitive chemicals or pharmaceutical materials.
Insulation and Coating
● Insulation: Electric heaters often come with high-temperature-resistant insulation to prevent heat loss and ensure safety. For example, mineral insulation or ceramic fiber might be used for high-temperature applications.
● Coating: Some titanium electric heaters are coated with ceramic or silicone for extra durability, thermal conductivity, and protection against external environments.
Thermal Efficiency
Titanium's ability to rapidly heat up and maintain high temperatures without losing energy to corrosion or external factors makes these heaters highly efficient, especially in demanding applications like chemical reactors or heating of fluids in marine or industrial environments.
Energy Efficiency
● Low Energy Consumption: Titanium heaters are known for their high efficiency, converting most of the electrical energy into heat with minimal loss.
● Fast Response Time: Titanium's excellent thermal conductivity allows the heater to reach the desired temperature quickly.
Installation and Maintenance
● Installation: Can be mounted horizontally or vertically, depending on the design of the system. Titanium heaters are often used in both industrial-grade and residential settings.
● Maintenance: Requires minimal maintenance due to titanium's high resistance to oxidation and scale buildup. However, periodic checks for electrical connections and insulation condition are recommended.
Applications
● Marine: Heating elements for water or fluid systems on ships, submarines, or offshore platforms where exposure to saltwater is constant.
● Chemical Processing: Titanium heaters are often used in reactors or tanks that handle corrosive chemicals like acids or solvents.
● Aerospace: Used in testing chambers or heating systems in high-altitude or extreme environments.
● Water Heaters: Specifically for environments like swimming pools, spas, and desalination plants.
● Food Processing: Heating for sensitive materials where non-reactive properties of titanium are crucial.
● Medical Equipment: In devices requiring precise, non-corrosive heating, like in incubators or sterilization chambers.
